Switching time measurement system
Product description The system is designed to measure time parameters such as switching time. In some scenarios, a zero-scan spectrum analyzer may be temporarily used as an oscilloscope. Structural scheme for measuring switching time Figure 5.
Description
marker
Product description
The system is designed to measure time parameters such as switching time. In some scenarios, a zero-scan spectrum analyzer may be temporarily used as an oscilloscope.
Structural scheme for measuring switching time

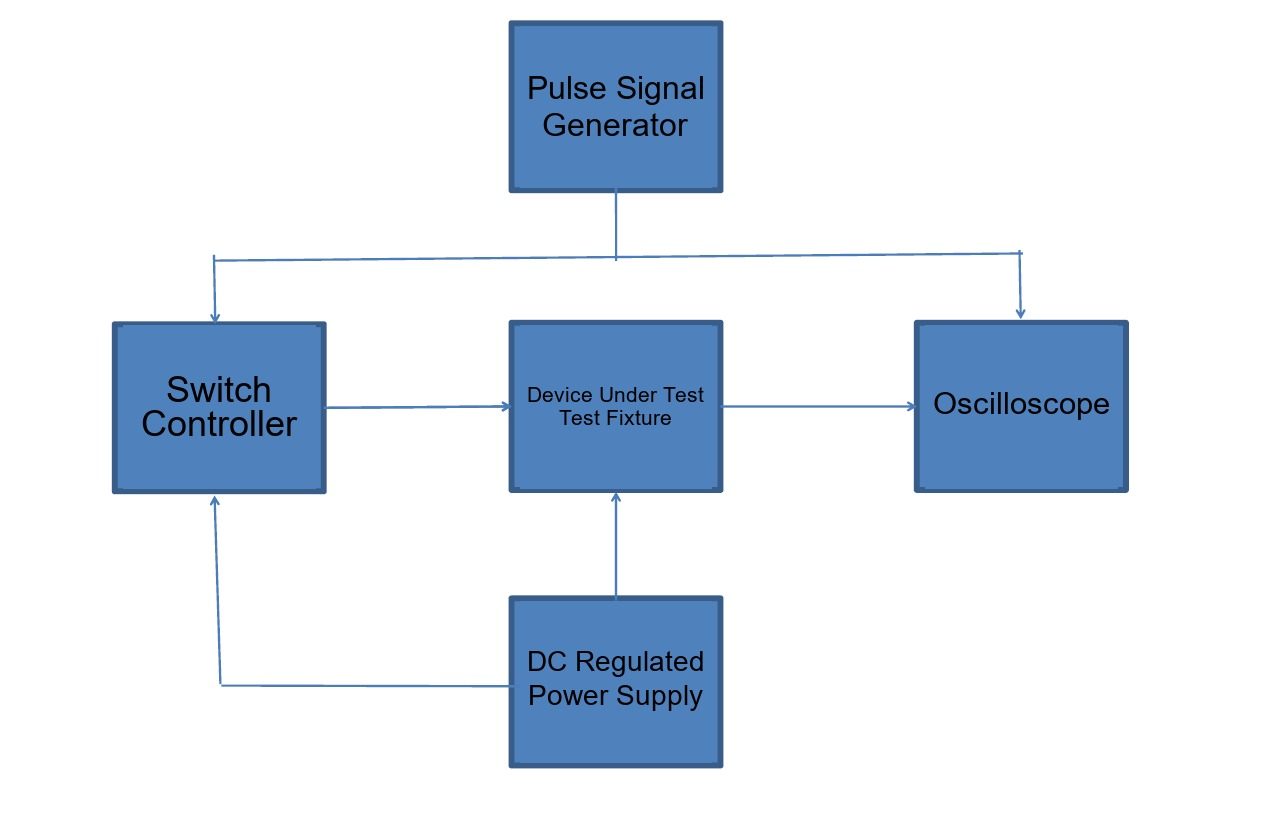

Fig. 5. Structure diagram of the switching time measurement system
Key points during measurements
When building a measuring system, all components must be reliably connected to a dedicated grounding line. It is strictly forbidden to use the power grid neutral as a protective grounding for the measuring system.
It is necessary to follow the established procedures and operating rules of the oscilloscope when switching on, calibrating, measuring and turning off.
The measurement conditions shall comply with the requirements.
The values of pulse delay, front length and recession duration shall be determined in accordance with generally accepted definitions.
