Review of the product

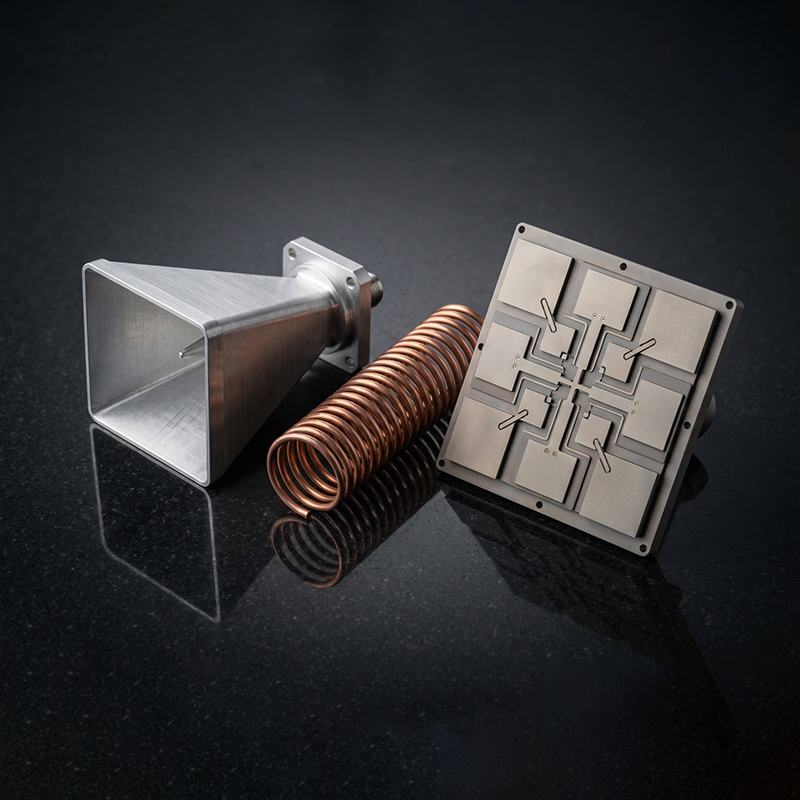

Antenna is a key device in high-frequency systems that provides bidirectional transformation between radio frequency electrical signals and electromagnetic waves in space. It performs two main functions: the emission of signals during transmission and the reception and capture of spatial signals. In accordance with the characteristics of the operating frequency range, optimization of radiation efficiency, coordination of impedance, improvement of the characteristics of the CSVN and the directed gain coefficient are ensured. The antenna adapts to various application scenarios, including broadband networks, point-to-point communication, short-range high-speed communication, radio frequency signal detection, and wireless networks. Products are presented in a wide range, are flexible installation and can be designed to order, taking into account operating conditions and transmission requirements.
Key functions
• Converting high-frequency electrical signals into electromagnetic waves in space and back, ensuring wireless reception and transmission of signals.
• Optimization of radiation directionality and reception sensitivity, increasing the signal transmission range.
• Coordination of path impedance, reduction of signal reflection losses and ensuring transmission efficiency.
Adaptation to different indoor and outdoor operating conditions, meeting requirements for miniaturization, high amplification and broadband application.
Scope of application
High-speed communication equipment, industrial wireless telemetry and telecontrol systems, high-frequency/microwave sensor devices, radio frequency signal detection devices, commercial wireless network equipment, research platforms for receiving and transmitting high-frequency signals, etc.
Typical technical parameters
| Name of the parameter | Operating frequency range | Typical reinforcement | harbour security | Port impedance | Constructive implementation | Standard connectors |
| Frequency range | 10 MHz ~ 100 GHz, to order | 0 dBi ~ 25 dBi, to order | ≤1.5~3, to order | 50 Ohms, 75 Ohms et al., to order | Ordered. | SMA, BNC, 2.92 mm, 1.85 mm, N-type, pin connector, microband, etc., to order |
